Item Details

Specifications
Benefits
Equipment
Download Brochure
Engine
Engine Model
Yanmar 3TNV70
Displacement
0.854L
Rated Power
10.3/2200kW/rpm
Operating Weight
Std. Operating Weight
1750kg
Hydraulic System
Main pump - Maximum flow
41.8lpm
Hydraulic Motors - Travel
2 Axial piston motor with parking brake
Hydraulic Motors - Swing
1 axial piston motor
Relief Valve - Implement Circuit
24.5mpa
Relief Valve - Travel Circuit
24.5mpa
Relief Valve - Heavy Lift Circuit
16mpa
Relief Valve - Pilot Circuit
4.5mpa
Service Capacities
Fuel Tank Capacity
23L
Hydraulic Tank Capacity
21L
Engine Oil
2.0L
Cooling System
3.8L
Final Drive (each)
0.33L
Undercarriage
Track Width
230mm
Track Shoes Number
37
Carrier Roller - Perside
3
Track Roller - Perside
2
Working Range
Max.Digging Force - Bucket
15.2kN
Max.Digging Force - Arm
9.2kN
Max.Digging Depth
2360mm
Max.Vertical Digging Depth
2215mm
Max. Excavating Distance
3900mm
Min. Swing Radius
1655mm
Height at Min. Swing Radius
2745mm
Transmission
Dimensions
Transportation Length
3575mm
Transportation Width
980/1350mm
Transportation Height
2420mm
Upper Body Width
980mm
Std.Track Width
230mm
Track Gauge
750/1120mm
Min.Ground Clearance
180mm
Tail Swing Radius

COMPACT DIMENSIONS

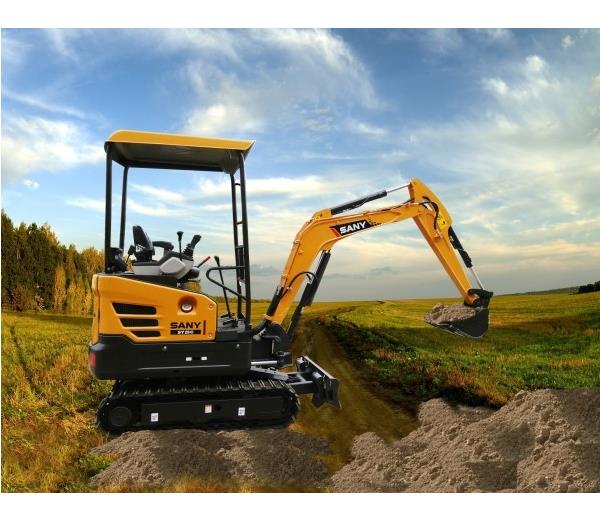

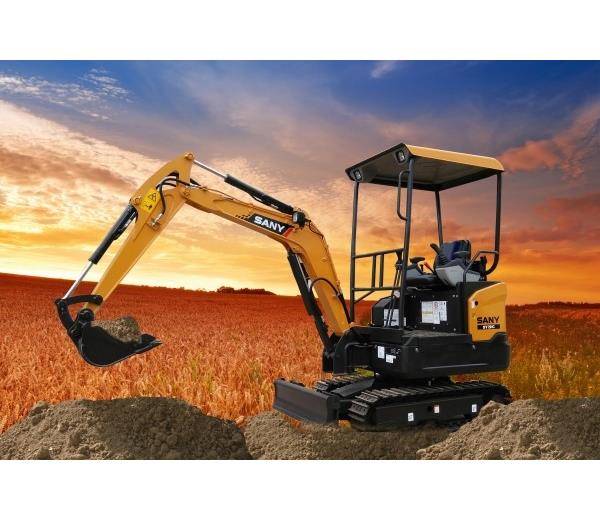

With an upper width of only 980 mm, the SANY SY20C can easily drive through narrow passages and spaces, especially with the 1750 kg weight, making the transportation more easily between different sites. The short tail swing is also ideal for tight job sites and confined spaces.
Extendable Undercarriage and adjustable front blade
The hydraulically extendable and reinforced undercarriage with adjustable front blade allows the machine to be configured for excellent working stability and optimum performance.



PERFORMANCE AND DURABILITY
SY20C adopts 10.3/2200KW/rpm Yanmar3TNV70 engine and optimized power matching technology, providing efficient, economical and reliable performance for the toughest of jobs. The Tier 3 engine is environmentally friendly, highly efficient, and low emissions.
The reinforced work equipment and high strength slewing circle provide a more stable overall performance of the machine.
Load sensing system ensures high controllability
The SY20C controllability is optimized with the application of the mature load sensing system and independently developed hydraulic commissioning technique.



USER FRIENDLY OPERATION
The standard canopy with newly-designed damping system and multi level noise reduction design makes operation safer and more confortable.

SY20C OPTIONAL EQUIPMENT

►Hammer piple lines

►Two-way lines (Attachement has two functions)

►FOPS&ROPS Cabin

►Rubber track

►Thick under cover

►Zero-swing or short tail

►Battery main switch

►Engine emergency cut off

►Travel motor-NACHI
